Description
Description:

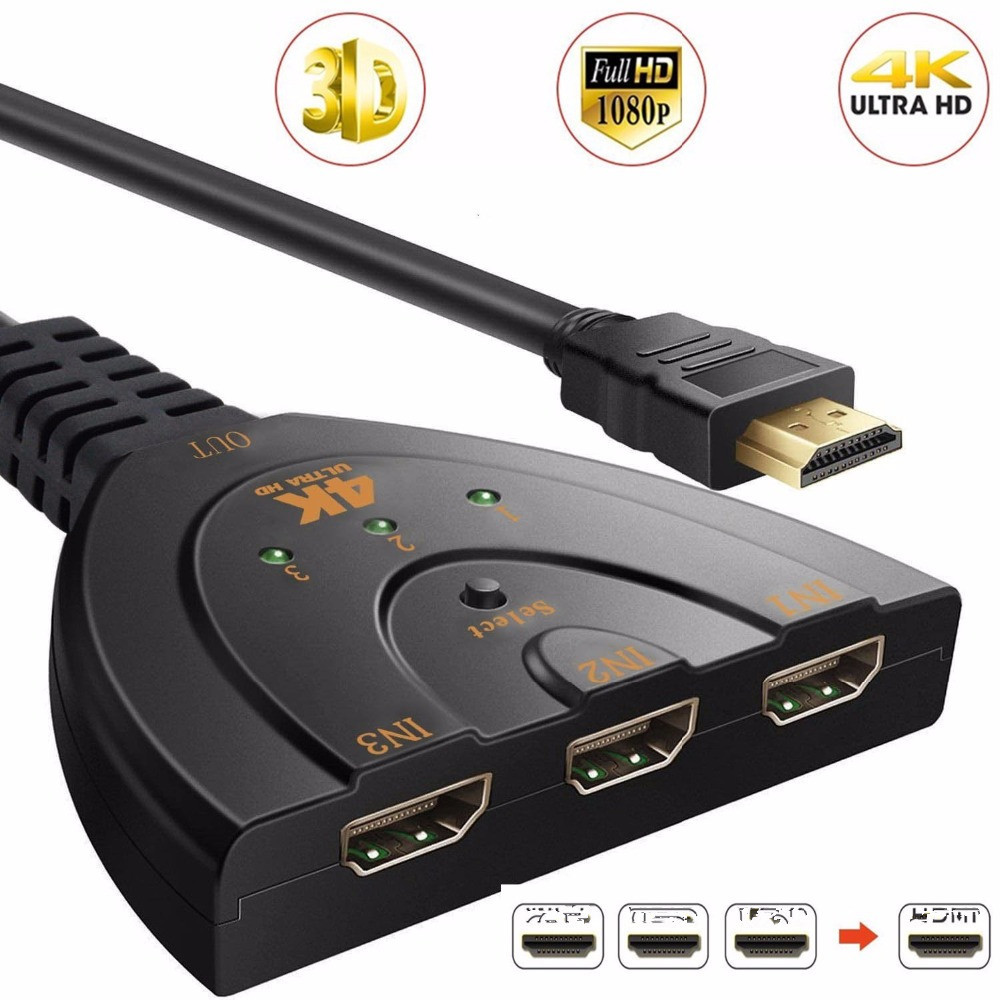

HDMI Switch 4K, 3 Port HDMI Switch Splitter 4Kx2K with Pigtail HDMI Cable, Gold Plated Connector, 4K Ultra HD 3D support, 3 Input 1 Output HDMI Switcher for HDTV, PS3, Xbox One, etc.
Powered from Connected Devices
No power adapter is necessary to make this switch work, as long as the connected devices supply sufficient power.
HDMI cables have the capability to deliver power from connected sources.
HDMI Supported Features devices
Up to 1080p, HDCP 1.0/1.1, 12-bit Deep Color, 3D, and uncompressed/compressed audio formats are some of the newer HDMI features supported on this switch.
Gold-Plated Connector
The 24K gold-plated connector on the 20in / 50cm cable resists corrosion and reduces tarnish.
Features:

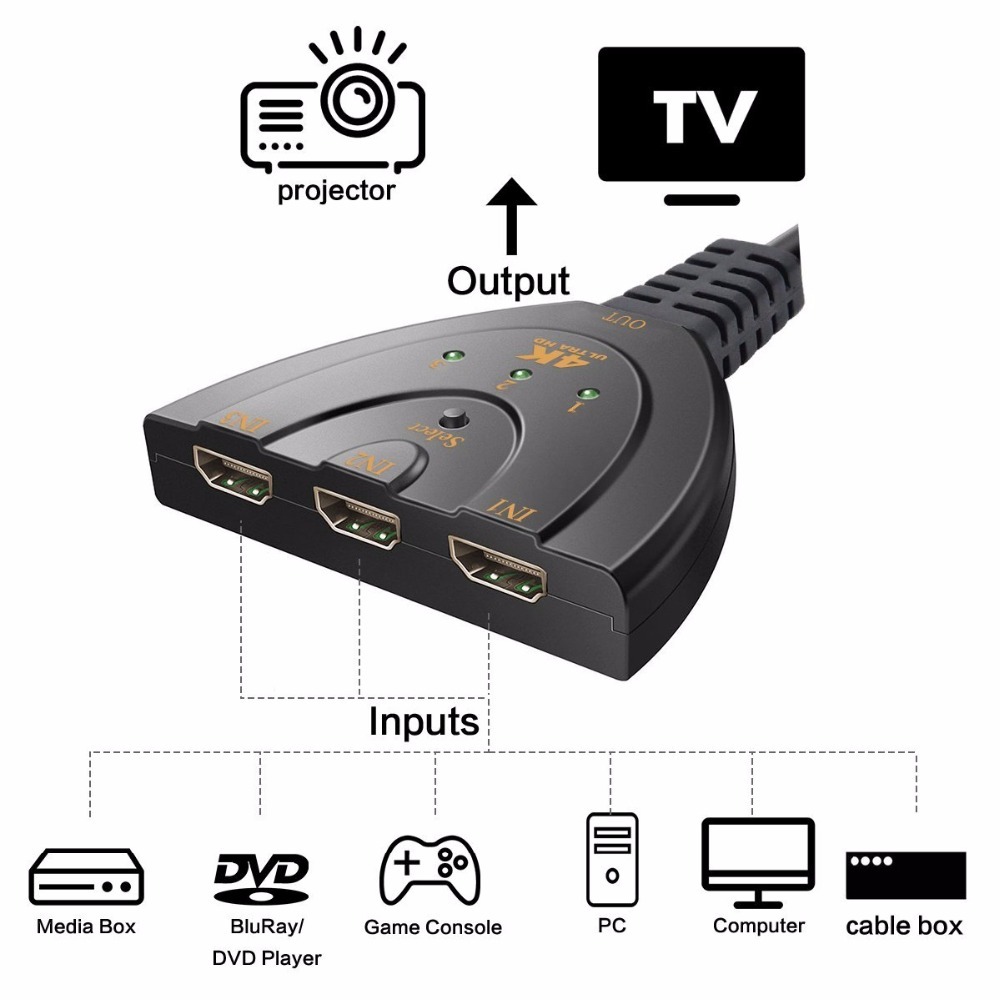

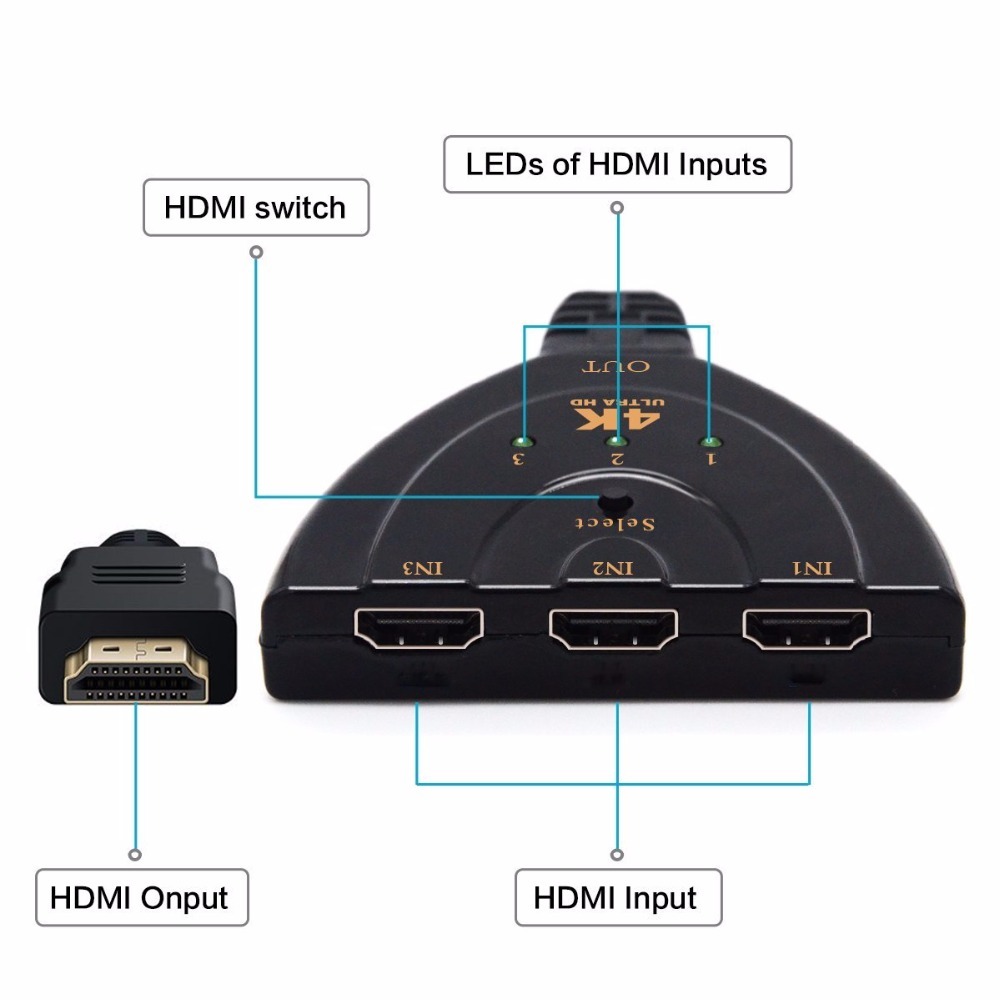

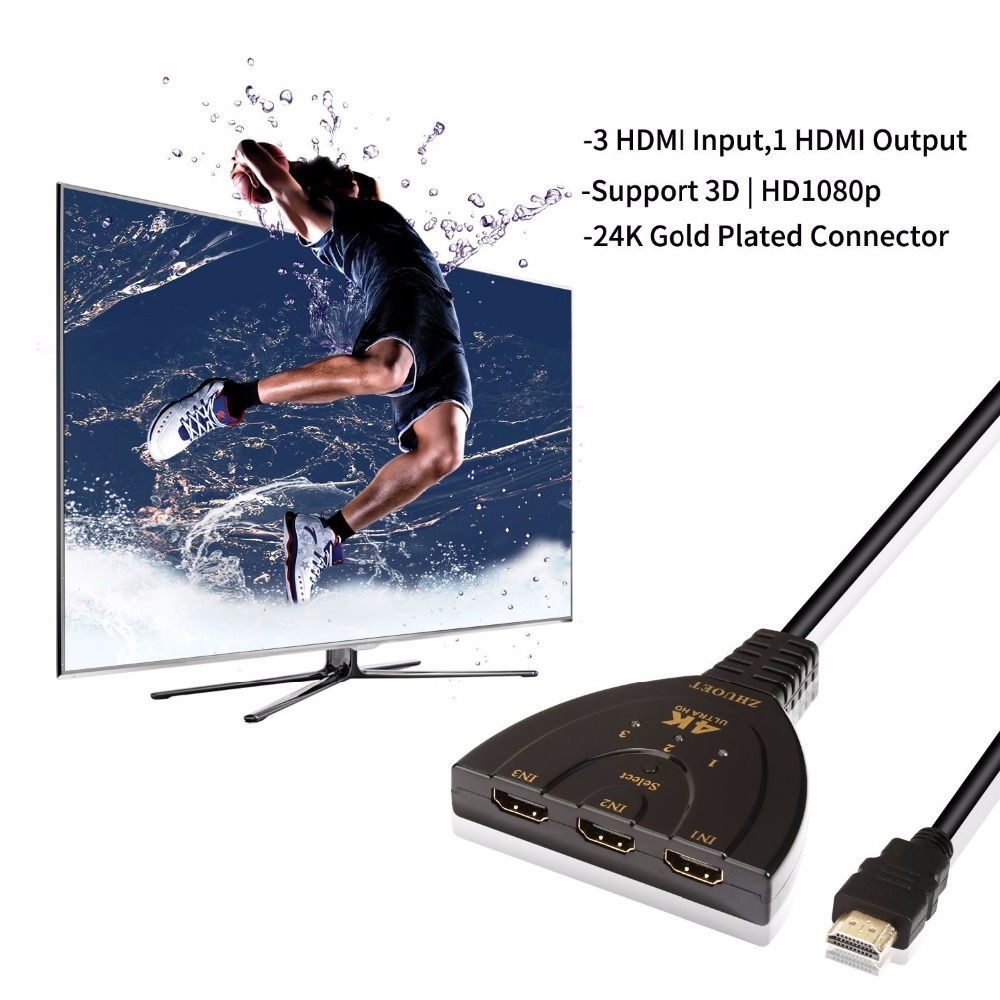

3 HDMI inputs / 1 HDMI output

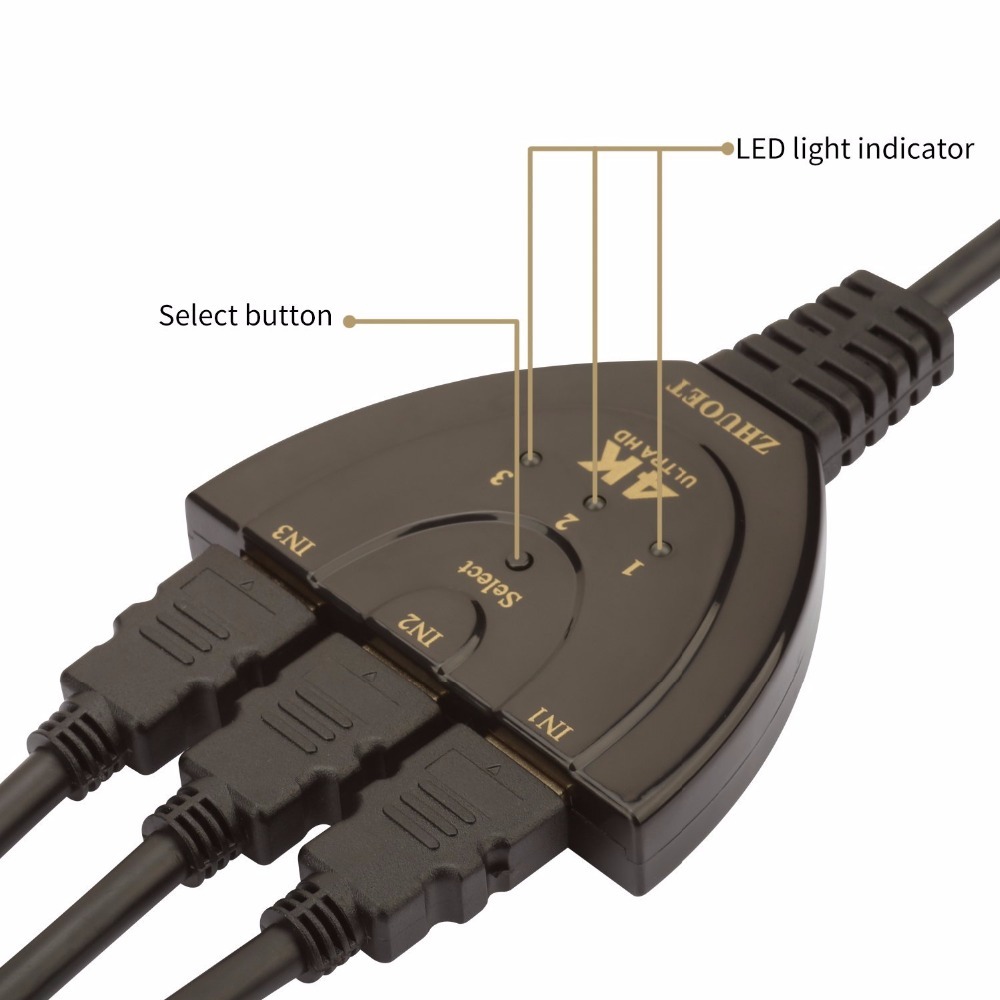

Intelligent Function: Smart, automatic operation – has the key-press-switching function
Supports 12-bit Deep color per channel; maximum of 36-bits across all channels
Supports 3D devices
Maximum Single Link Video Range: 1920x1080p
Supports HDCP pass-through
Supports 2.5Gbps/250MHz per channel, maximum bandwidth per display is 7.5Gbps
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HS, and Dolby TrueHD
24k gold-plated connector
Comes with one fixed 1’3/4 ft. HDMI cable (pigtail) – Plug and Play

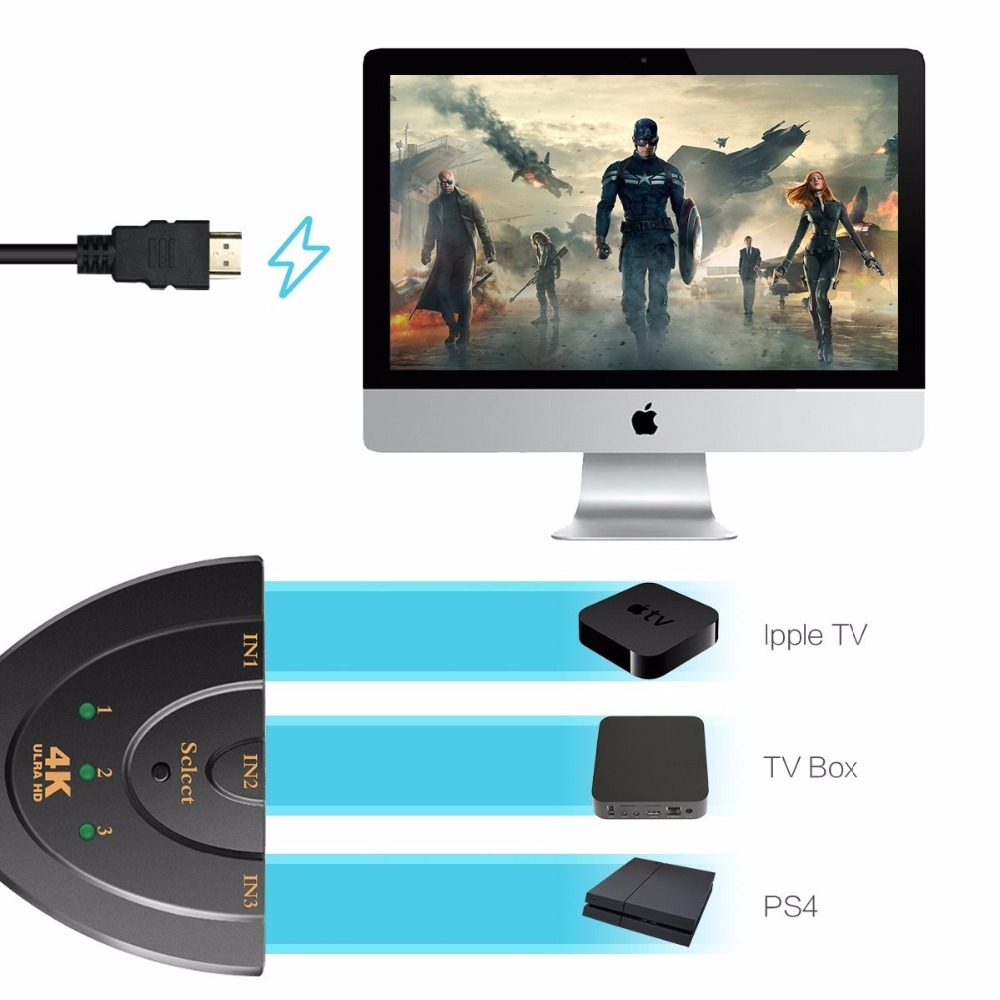

Works well with Nintendo Switch, Blu-Ray, Cable Box, PS3, PS4, Xbox One S, Xbox 360, etc – Support 3D.Compatible Devices: Video Game Consoles
Technical Specification:
Bandwidth: 2.97Gbps
Input port: 3 x HDMI
Output port: 1 x HDMI
Audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
Power consumption: 0.2W
Electrostatic protection mode: ±8kV (air gap discharge); ± 4kV (contact discharge)
Working temperature: 0℃~ 40℃/ 32℉~ 104℉
Storage temperature: -20℃~ 60℃/ -4℉~140℉
Material: Plastic
Dimension: 87×59.5x19mm / 3.43×2.34×0.75 inch(Approx)
Color: Black
Package Includes:
1 x HDMI Splitter 3 to 1
1 x Standard HDMI Male To Male Cable
1 x User Manual
